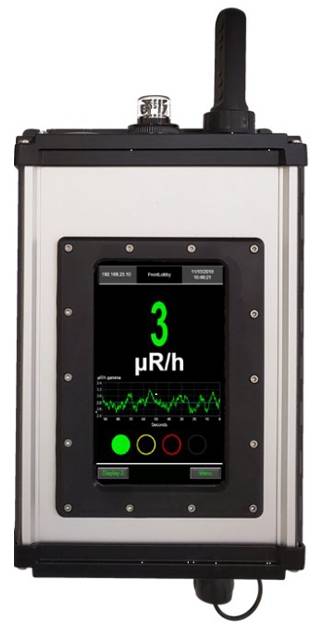

The Nucsafe® Shield area monitor uses state-of-the-art passive scanning technology to detect changes in radiation levels emitted by gamma radiation. The Nucsafe Shield area monitor is designed for remote operation, monitoring key locations in steel mills, such as gauge houses and laboratories. It utilizes spectroscopic technology to reliably identify nuclides present in a designated area.

FEATURES

  • Spectroscopic detection for superior nuclide identification

  • Centralized monitoring of multiple detectors from a single unit

  • Easy-to-use, browser-based user interface

  • Advanced analysis algorithms for high sensitivity results and minimal nuisance alarm

Physical Specifications

  • Application: Area monitor
  • Number of Gamma Detectors: 1 detector
  • Gamma Detector Material: Geiger–Müller (externally connected)
  • Gamma Detector Size: 0.84 in Dia. x 1.5 in L (21.4 mm Dia. x 38.1 mm L)
  • External Dimensions: 14.6 in L x 8.1 in W x 3.4 in D (37 cm L x 21 cm W x 9 cm D)
  • Weight: 5.5 lbs (2.05 kg)

Performance Specifications

  • Gamma Sensitivity: 0.01 µSv/h–10 mSv/h (1 µR/h–1 R/h)

Operation

  • Inspection Mode: Stationary
  • Ports: Ethernet

Environment / Safety

  • Temperature: -4 °F to 140 °F (-20 °C to 60 °C )
  • Humidity: 5 to 95% non-condensing
  • Environmental Protection: IP65
